T170-315 cast aluminum grille (connection ø315 mm)

Download info
Still have a question after reading all the information and documents? Send us a message using the button below.

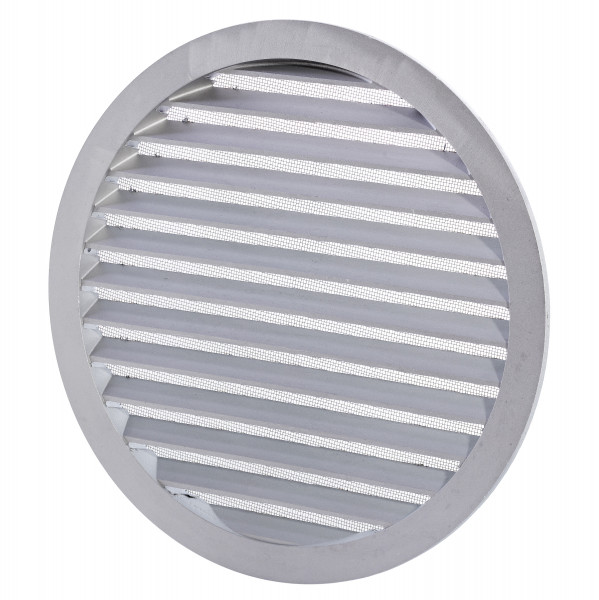

T170-315 cast aluminum grille (connection ø315 mm)

Strong round cast aluminum exterior wall grille for various ventilation applications, both for supply and exhaust of ventilation air.

Suitable for installation in round holes or ducts. The grille fits directly onto spiral ducts.
The back of the grille is equipped with insect mesh.

Color: bare aluminum
(Available in RAL color upon request, price on request)

Features
Article number
040.1016.30
EAN
8718026793029
Brand
Tilmar
Dimensions
Diameter 350 mm
Thickness 25 mm
Mesh size 2.2 mm
Other
Capacity 44.1 dm3/s bij 1Pa
Air passage 530 cm2
Size ø315 mm
Material aluminum
Feature built-in
Shape round
Packing unit Piece
Application
Opening diameter 315 mm
Opening depth 20 mm
Applicable wall / facade
Logistic
Weight 1351 gram
Customs code 76169910
Order now
No direct delivery to private individuals
Choose packing unit
Piece
€ 62,35
excl. VAT
Contractor and installer prices excl. VAT
