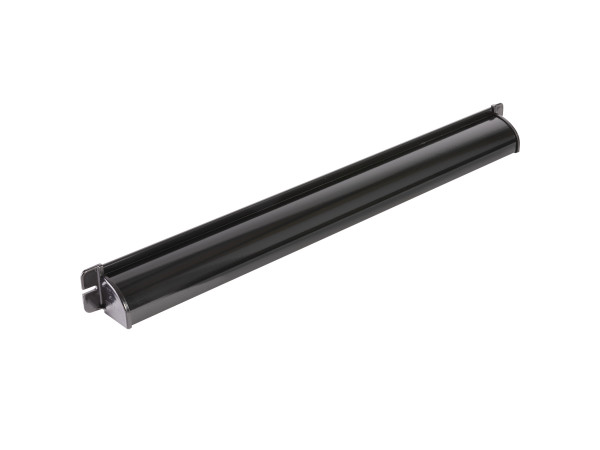

SM1400 Rotary external hood 500mm black
The aluminum SM1400 Rotary slot grilles are suitable for installation on window frames or above the window frame heads.
The adjustable interior grille is placed on the frame over a row of drilled holes or a milled slot. The exterior grille is mounted on the outside to prevent rain intrusion and keep out insects.
This grille has a KOMO Certificate.
Installation can be done on wooden, plastic, or aluminum windows. The slot to be milled is 16-17mm high and should be 2 cm shorter on both sides than the total length of the ventilation grille.
Air passage:
140 cm² - 9.6 dm³/s at 1Pa, per meter length
Sizes:
300, 400, 500, 600, 700, 800, and 1000mm
Color:
white (approximates RAL-9003)
black (approximates RAL-9005)
Other length sizes and RAL colors are available on request. The interior and exterior grilles are also available separately.
Remote control:
Each interior grille can be operated with an operating rod. Convenient when the grille is mounted high.
