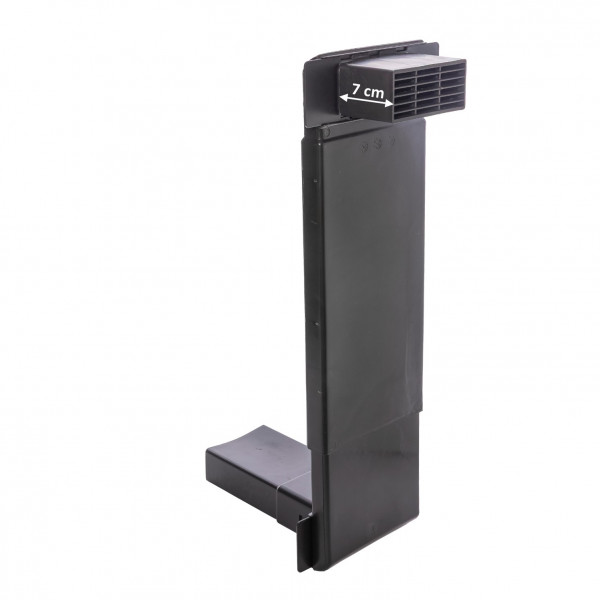

FlexVent-HV-ECO Air vent

The sleek FlexVent-HV-ECO, designed specifically for sustainable narrow 7cm facade bricks, ensures more attractive brickwork and optimal ventilation of crawl spaces. Perfectly fitting into the brick façade, thanks to the great flexibility of this floor duct; ultra-thin and maximally adjustable. Also suitable for extra thick insulated façades; the FlexVent-HV plus version up to 47cm, with additional horizontal extensions even wider. This also applies to the height; with vertical extensions, it can be extended per additional 30cm.
So unlimited horizontal and vertical extension!

Finally, true convenience for the bricklayer. The FlexVent-HV-ECO is a horizontally & vertically adjustable and thin floor ventilation duct. This provides optimal, easy adjustment possibilities at work resulting in an ultimately sleek façade.

What simplicity and ease! The FlexVent-HV floor ventilation duct offers the following advantages:

• Suitable for sustainable narrow facade bricks of 7cm
• The narrow shaft fits all cavity widths starting from 3 cm
• No need to remove or cut insulation material
• Vertically extendable up to a whopping 70 cm!
• Air passage of 29 cm²
• Ventilation duct and standard wall grid made of quality black plastic
• Alternative grids in stainless steel for various brick sizes; high quality and very attractive
• Horizontally extendable indefinitely on both the upper and lower sides with a separate extension piece
• Indefinitely extendable in height with a vertical extension piece
• The edges of the wall grid are always square, making them easy and perfectly fitting between and on the stones
• FlexVent-HV plus variant is suitable for extra thick insulated façades; up to 47cm façade thickness
